PTFE Coated Fabric - food belt pro

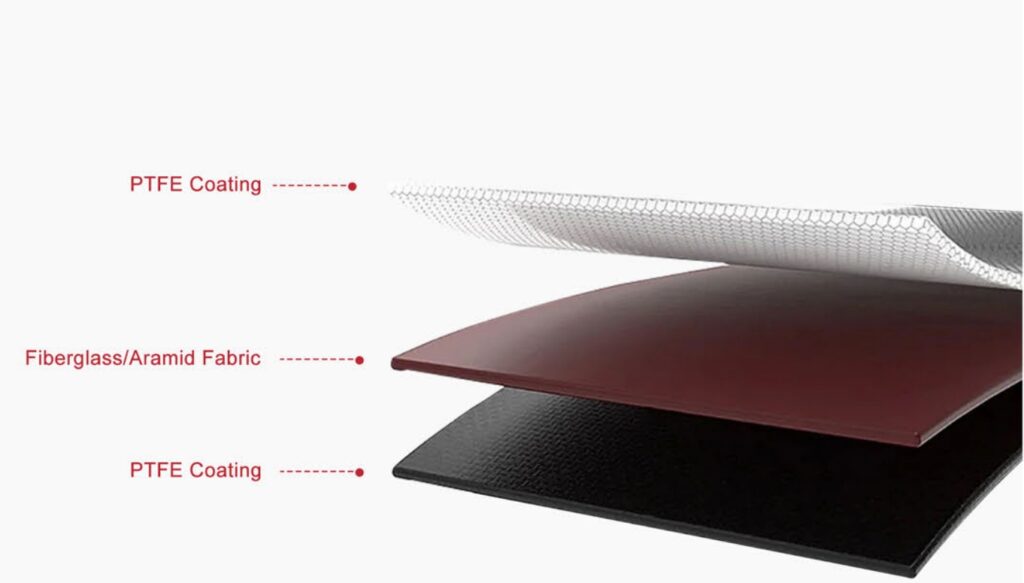

COATEX’s PTFE coated fabric is manufactured by impregnating and sintering PTFE onto industrial textiles,comprising fiberglass and aramid fabrics. We subsequently process the PTFE coated fabric to produce end products for a diverse range of industries, such as aerospace, automotive, electrical, energy, flooring,packaging, and textile manufacturing, among others.

Characteristics

Excellent non stick property
Continuously working between-170℃to +260℃
Low coefficient of friction
Strong dimensional stability
High dielectric strength
Outstanding chemical resistance
Resistance to UV.IR and HF
Non toxic

PRODUCTS

PTFE Fabric Premium Series
The Premium Series of PTFE fabric have an exceptionally smooth and glossy coating, offering excellent release, superior tensile strength, and resistance to abrasion. The high-gloss PTFE fabric has a wide range of applications, such as laminate-release sheets, belting for food processing, electrical insulation, industrial processing, and more.

Style	Standard Width(mm) Please ask for other widths	Normal Thickness(mm)	Weight(g/m²)	PTFE Content(%)	Tensile Strength Warp/Fill (N/cm)
YS9003AJ	1000/1250	0.025	50	60	60/52
YS9004AJ	1000/1250	0.04	80	69	60/52
YS9005AJ	1000/1250	0.05	83	66	60/52
YS9008AJ	1000/1250	0.08	155	68	104/98
YS9013AJ	1000/1250/1500	0.13	270	60	240/200
YS9015AJ	1000/1250	0.15	316	65	250/210
YS9018AJ	1000/1250	0.18	370	55	320/305
YS9020AJ	1000/1250/1500	0.2	410	60	280/256
YS9025AJ	1000/1250/1500/2000/2600	0.25	530	62	460/400
YS9030AJ	1000/1500/2000/2600	0.3	625	53	680/640
YS9035AJ	1000/1500/2000/2600	0.35	680	62	540/508

PTFE Fabric Industrial Series
The PTFE fabric Industrial Series features a medium level of PTFE coating, providing cost-effective performance. With its smooth and non-porous coating, the Industrial series is often used as a substitute for the Premium series.

Style	Standard Width(mm) Please ask for other widths	Normal Thickness(mm)	Weight(g/m²)	PTFE Content(%)	Tensile Strength Warp/Fill (N/cm)
YS9007AJ	1000/1250	0.07	110	53	174/130
YS9010A-1	1000/1250	0.1	170	37	240/200
YS9010A-2	1000/1250	0.1	190	46	240/200
YS90011AJ	1000/1250	0.11	220	48	220/180
YS9012AJ	1000/1250/1500	0.12	245	59	230/190
YS9020A	1000/1250/1500/1900	0.2	350	43	460/410
YS9021A	1000/1250/1500/1900	0.21	410	51	460/410
YS9022A	1000/1250/1500/1900	0.22	450	55	460/410
YS9023AJ	1000/1250/1500/2000/2600	0.23	500	60	420/360
