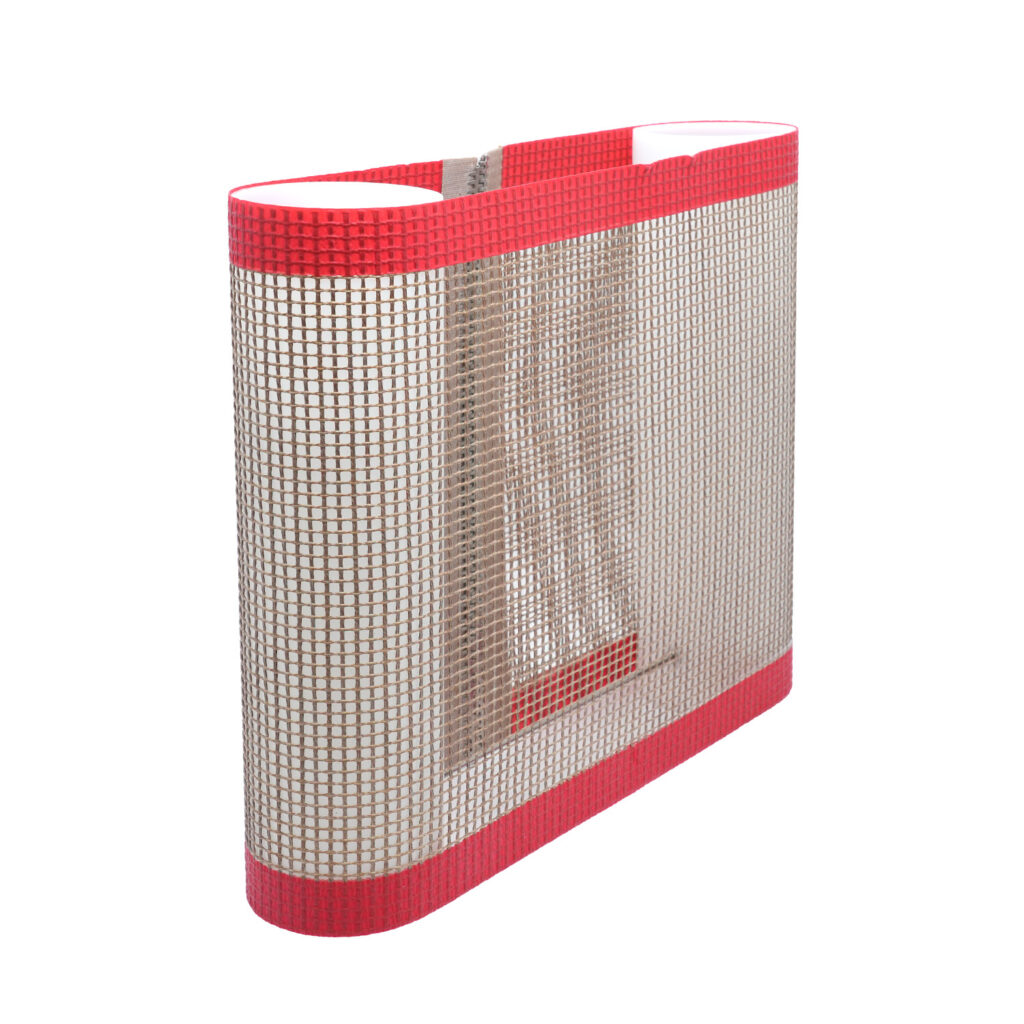

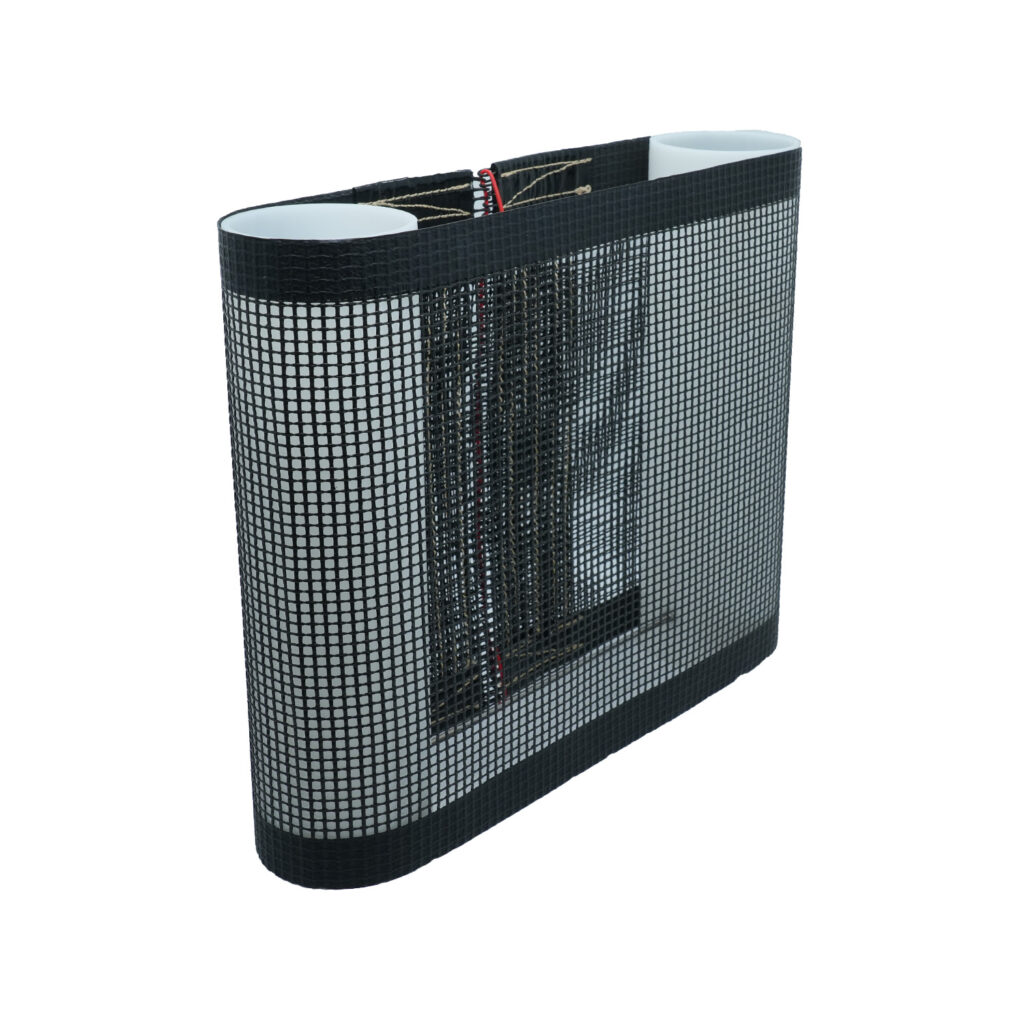

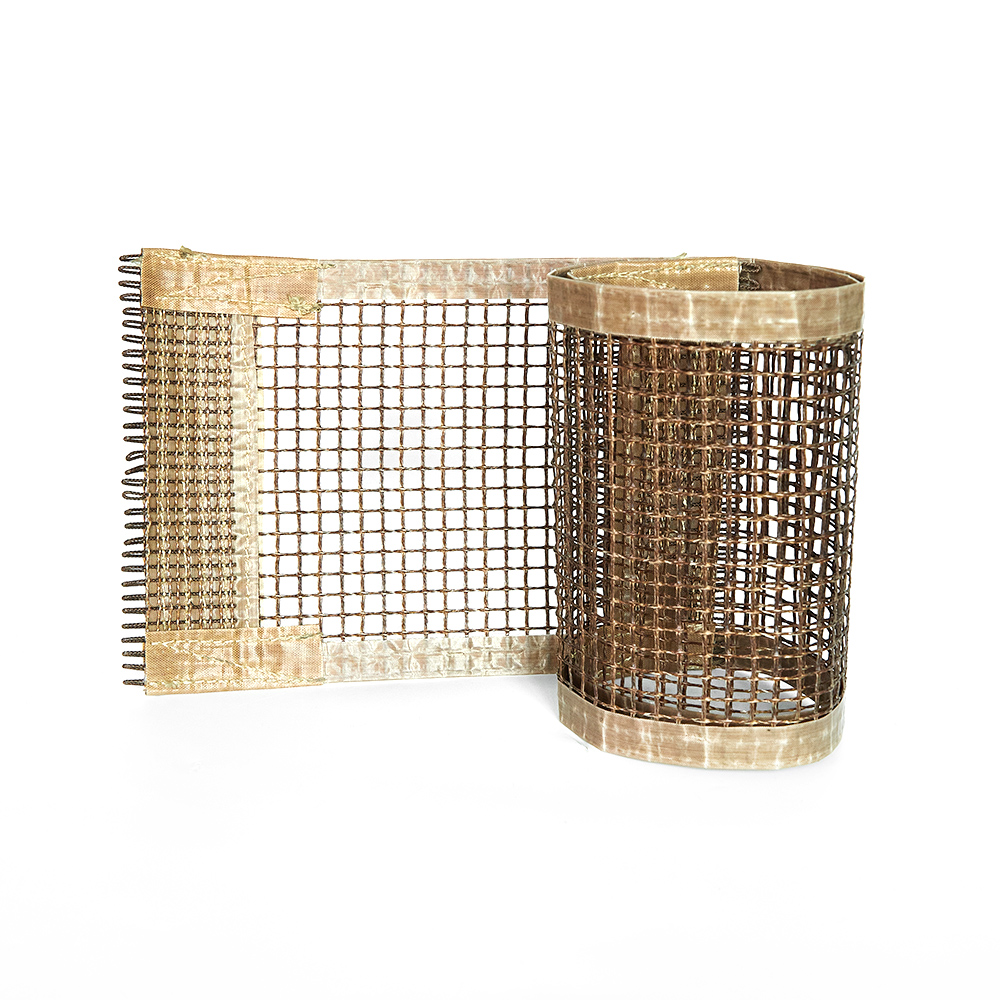

PTFE Open Mesh Fabric
PTFE open mesh fabric is coated with high quality PTFE resin, the basic material is woven open mesh fiberglass or aramid fabric (like Kevlar or Nomax).The main applications is screen printing, drying industry,packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.The mesh size of PTFE open mesh fabric is ranging from 1×1,2×2.5,4×4,5×5,8×8 to 10×10
Properties of PTFE mesh fabrics
- Controlled porosity,different mesh size from 1mm to 10mm could be made
- Resist almost all chemical,such as corrective agent and others
- Operating temperature range from -70 to 260 degrees
- Superior non-stick surface, easy to clean and release
- Any sizes could be made, the maximum width is 4m
- Exceptional strength and dimensional stability.
- Food grade,can touch food directly
- Light weight, easy to install
- Resist to UV,IR and HF
- High dielectric strength

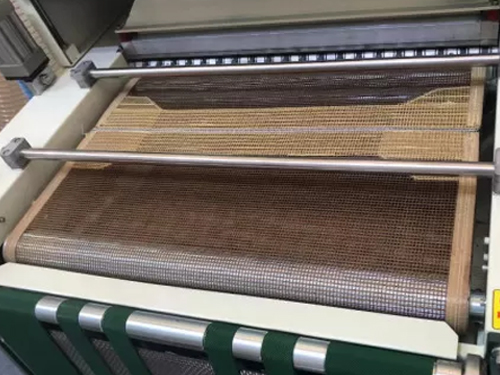

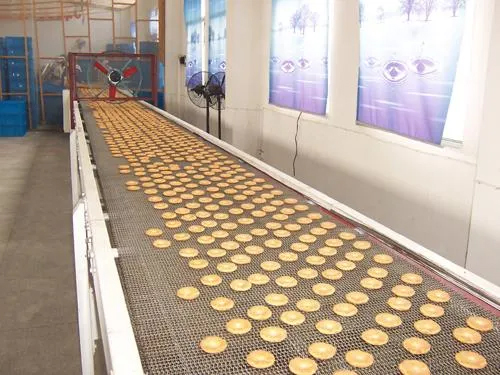

Application
Specifications
| Style | Standard Width(mm) | Mesh Size(mm) | Weight(g/m2) | Weft | Color | Tensile Strength Warp/Fill(N/cm) |
| YS6001 | 1000,1500,2050,2600, 2800,3200,3650,4000 | 1×1 | / | / | Brown | 446/330 |
| YS6002 | 1000,1500,2050,2600, 2800,3200,3650,4000 | 1×1 | / | / | Black | 446/330 |
| YS6003 | 1000,1500.2050.2500, 2750,3200,3350,3600, 4000 | 4×4 | 460 | Single weft | Black | 320/434 |
| YS6004 | 1000,1500,2050,2500, 2750,3200,3350,3600, 4000 | 4×4 | 460 | Single weft | Brown | 320/434 |
| YS6008 | 1000,1500,1700,2050,2500,2700,3200,3400, 3600,3800,4000 | 4×4 | 580 | Double weft | Brown | 360/500 |
| YS6011 | 1000,1500,2500,2700, 3200,3800,4000 | 4×4 | 580 | Double weft | White | 330/470 |
| YS6012 | 1000,1500,1700,2050, 2500,2700,3200,3400, 3600,3800,4000 | 4×4 | 580 | Double weft | Black | 360/500 |
| YS6013 | 1000,1500,2000,3000 | 10×10 | / | / | Brown | 220/360 |
| YS6014 | 1000.1500,1800,2000, 3000,3600 | 2×2.5 | / | / | Black | 290/400 |
| YS6015 | 1000,1500,1800,2000, 3000,3600 | 2×2.5 | / | / | Brown | 290/400 |
| YS6016 | 1000,1400,2000,2800 | 2×4 | / | / | Brown | 330/470 |
| YS6017 | 1000,1500,2000,3600, 4000 | 5×5 | / | / | Black | 320/434 |
| YS6018 | 1000,1400,2000,2800 | 8×8 | / | / | Brown | 350/480 |
